Description

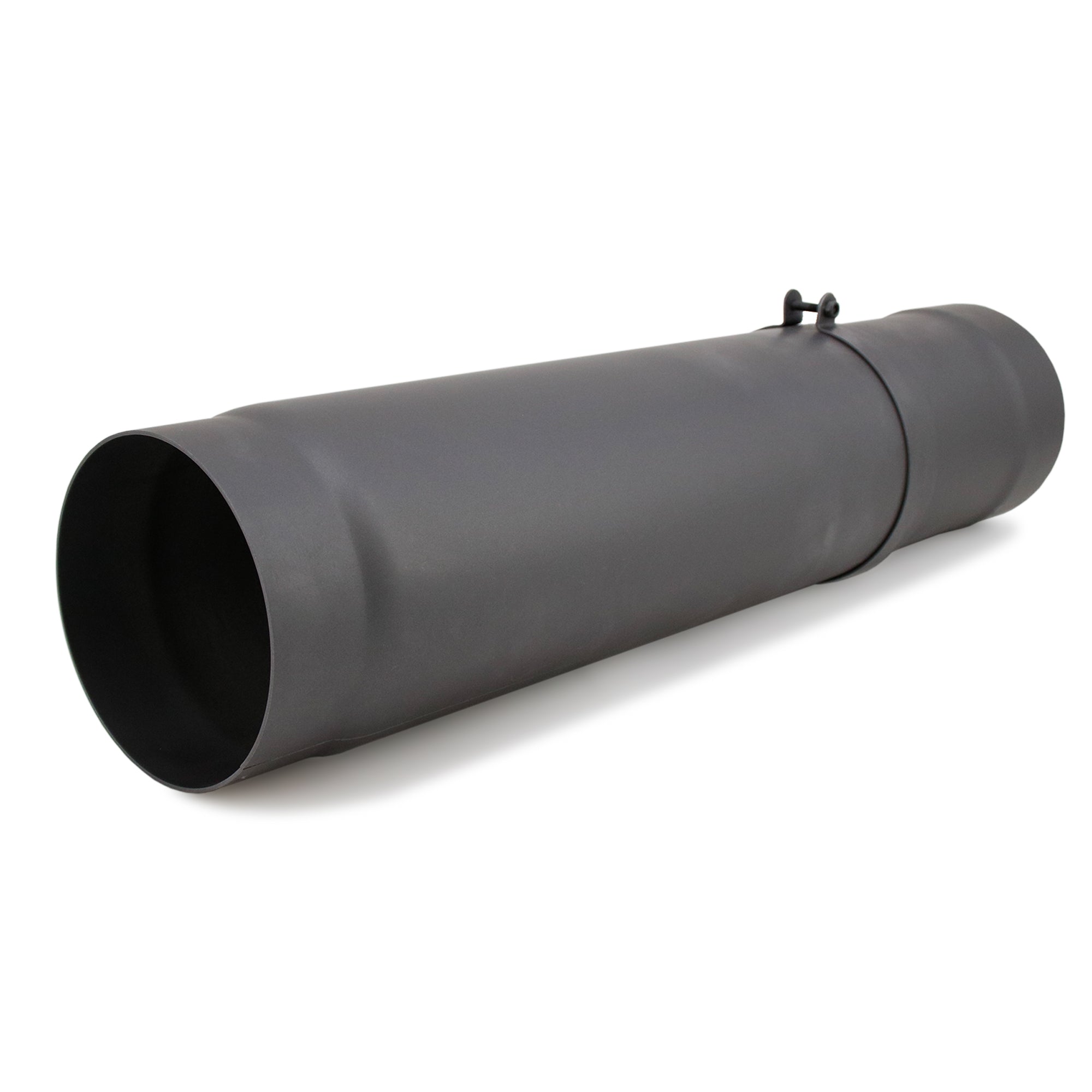

The telescopic pipe with sealing rings and clamp is usually used as a flue gas-tight connection between two fixed points, for example, a very heavy stove and an already existing chimney connection, or when the chimney is located in the floor ceiling and the fireplace is to be placed under it.
The pipe length is used for a fireplace's rear or top connection to a chimney. Please note that other components, such as a double wall socket or an angle, may also be necessary. Furthermore, the pipe length is used to extend and distort existing flue pipes.
The pipe length is used for a fireplace's rear or top connection to a chimney. Please note that other components, such as a double wall socket or an angle, may also be necessary. Furthermore, the pipe length is used to extend and distort existing flue pipes.

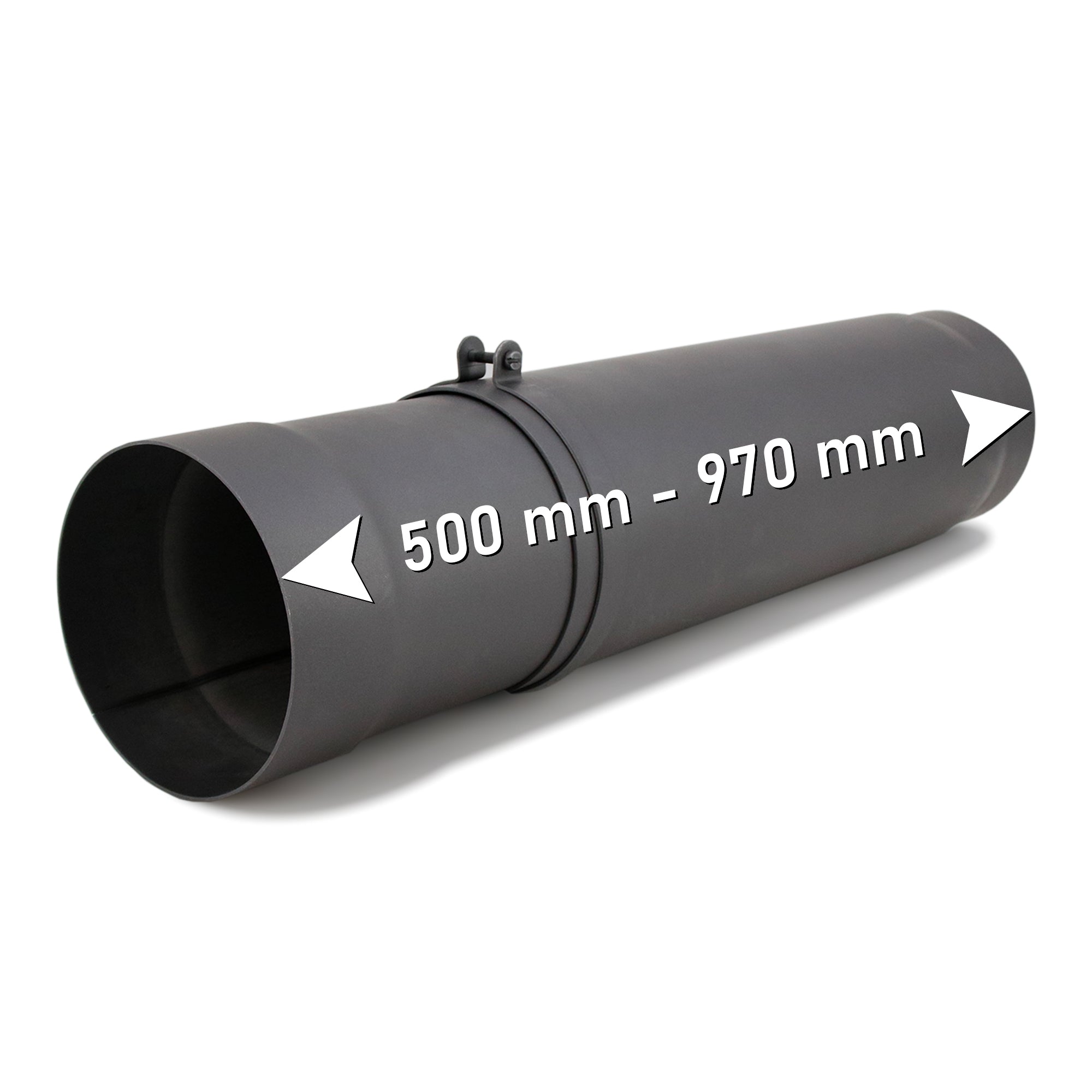

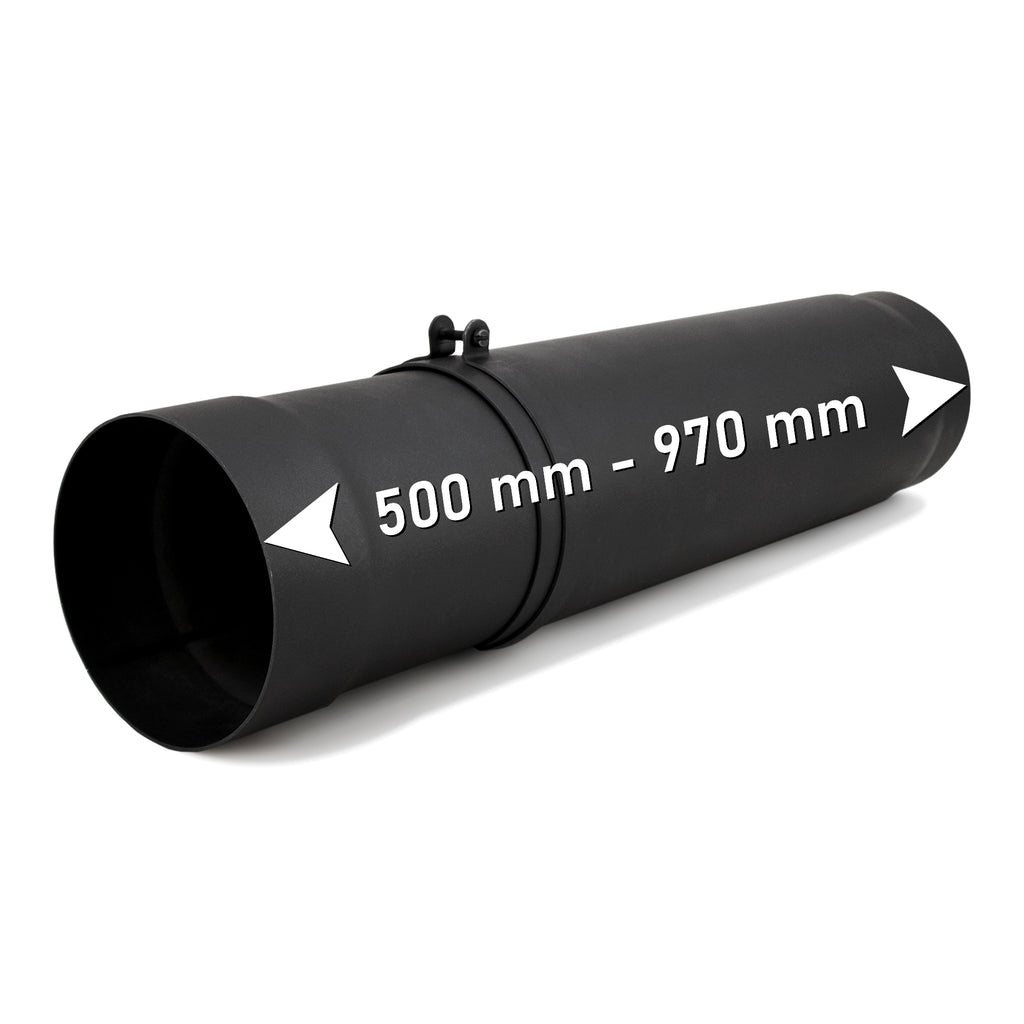

Product dimension
Min. Total length
500 mm
Max. Total length
970 mm
Min. Effective length
450 mm
Max. Effective length
920 mm
Technical Data
Material
Steel 2 mm
Temperature resistant
up to 500°C
Rejuvenation
50 mm, retracted
with Cleaning door
No
With throttle valve
No
Norm
DIN EN 1856-2:2009
Surface coating
Senotherm-Lacquer
