Description

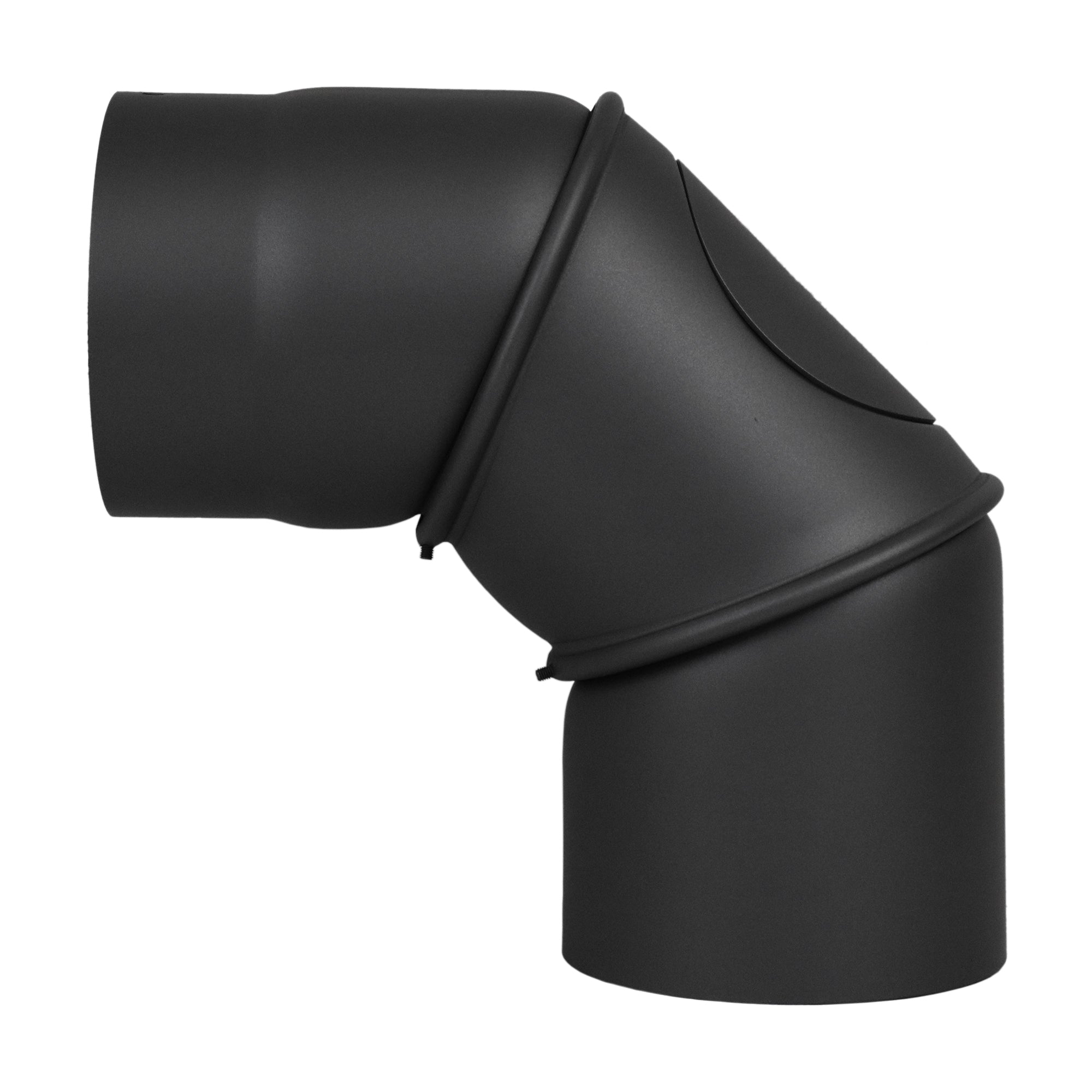

The elbow is used for a fireplace's rear or top connection to a chimney. Please note that other components, such as a double wall socket or extension, may also be necessary. Further, the elbow is used to extend and warp existing flue pipes.
Outer Thigh
Diameter 120 mm
280 x 280 mm
Diameter 130 mm
280 x 280 mm
Diameter 150 mm
280 x 280 mm
Diameter 160 mm
280 x 280 mm
Diameter 180 mm
280 x 280 mm
Diameter 200 mm
305 x 305 mm
Technical Data
Material
Steel 2 mm
Temperature resistant
up to 500°C
Rejuvenation
50 mm, retracted

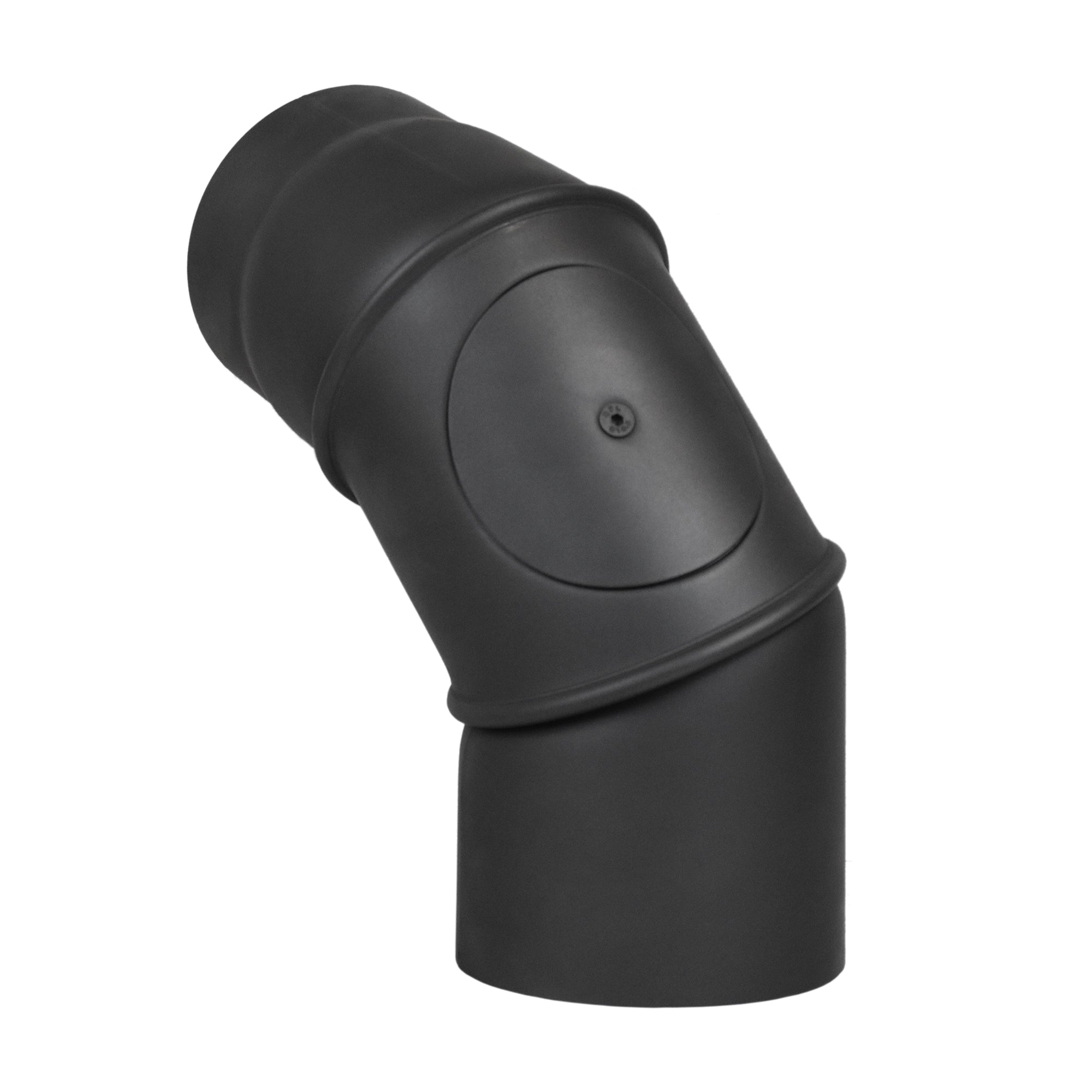

with Cleaning door
Yes
Adjustable
from 0° to 90°
Norm
DIN EN 1856-2:2009
Surface coating
Senotherm-Lacquer
