Description

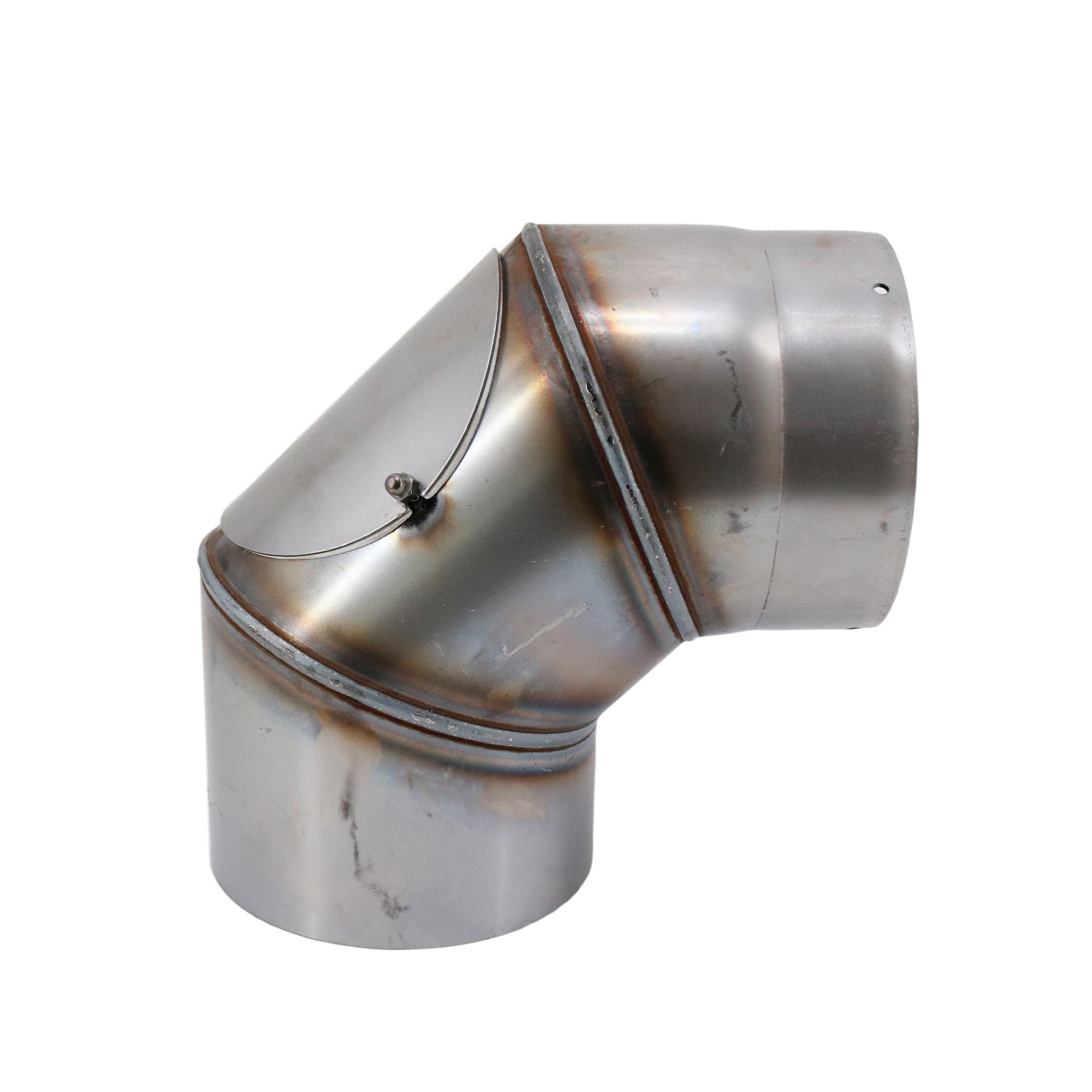

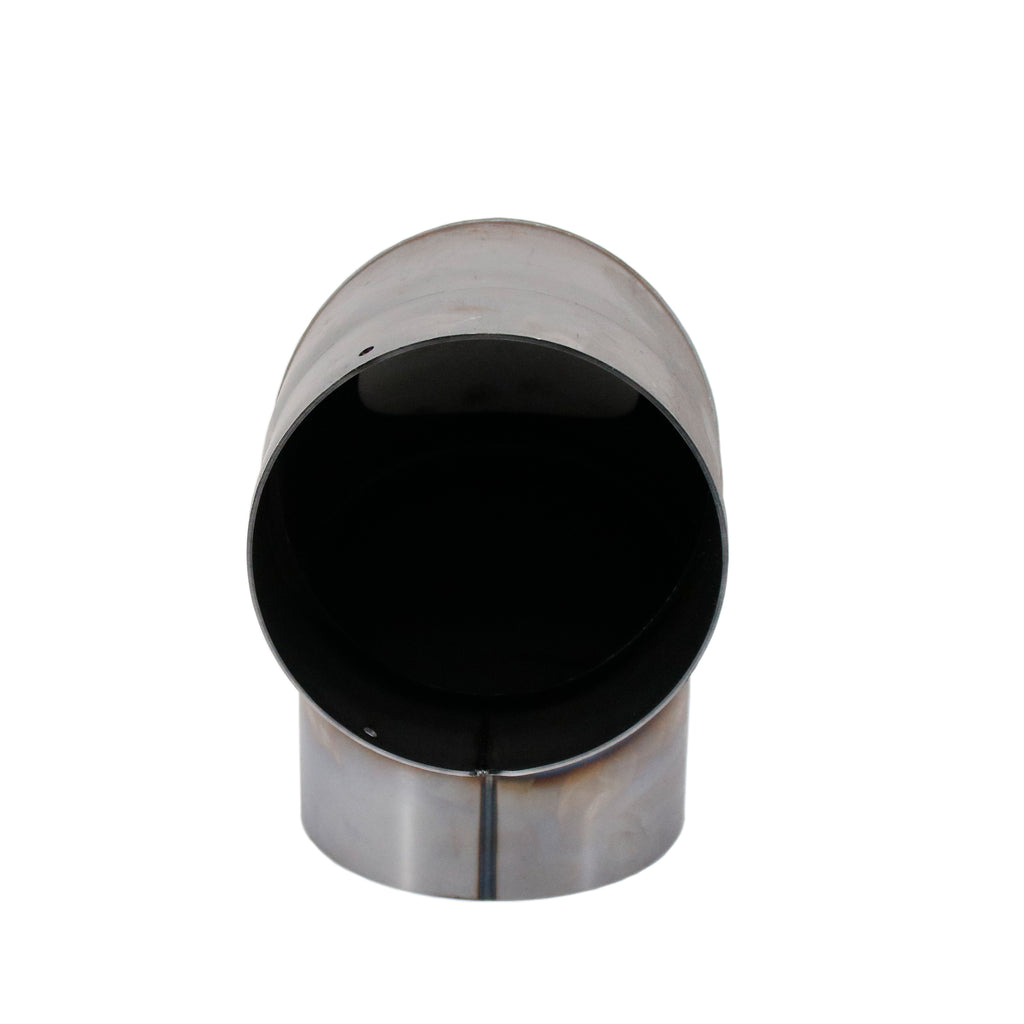

The elbow is used for a fireplace's rear or top connection to a chimney. Please note that other components, such as a double wall socket or extension, may also be necessary. Further, the elbow is used to extend and warp existing flue pipes.
Outer Thigh
Diameter 150 mm
260 x 260 mm
Diameter 160 mm
270 x 270 mm
Diameter 180 mm
290 x 290 mm
Diameter 200 mm
308 x 308 mm
Diameter 250 mm
360 x 360 mm
Technical Data
Material
Steel 2 mm
Temperature resistant
up to 600°C
Rejuvenation
50 mm, retracted

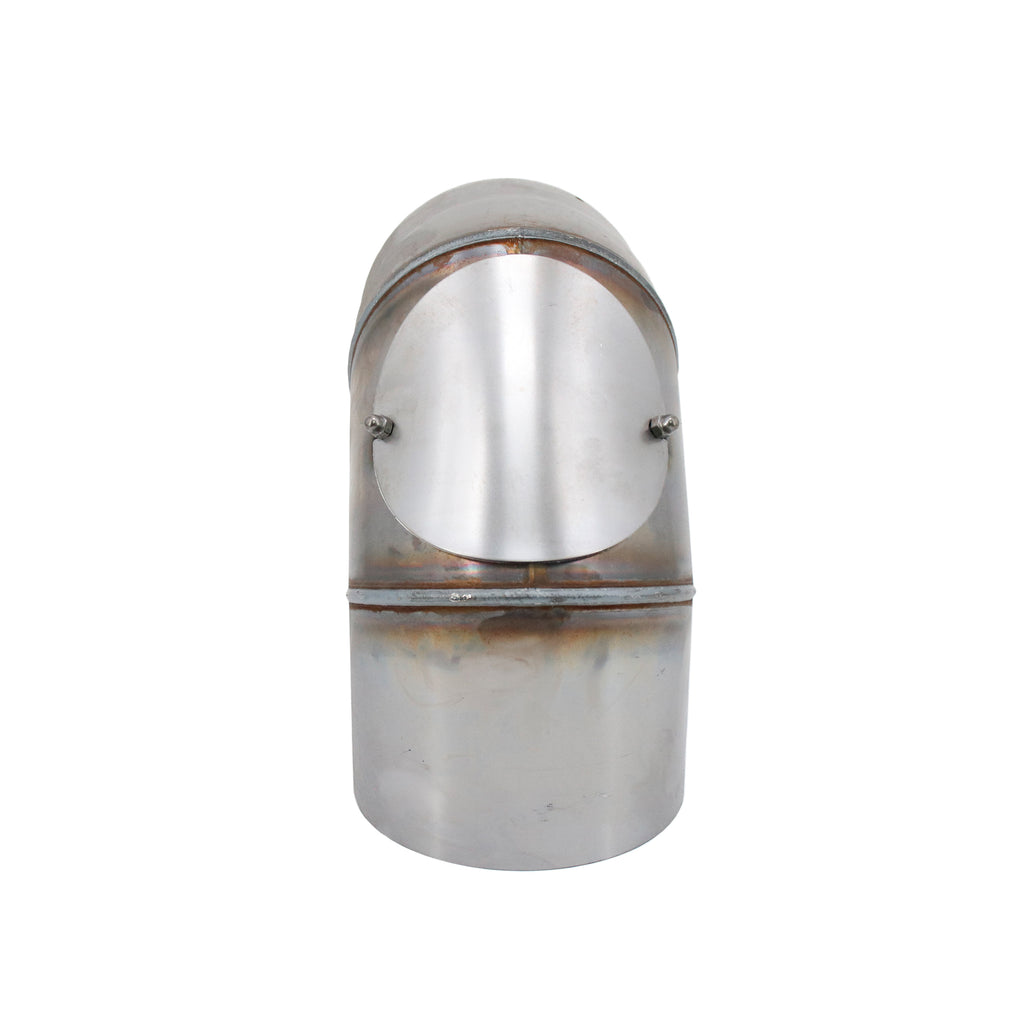

with Cleaning door
Yes
polished cross seams
No
Norm
DIN EN 1856-2:2009
